Frameset:6066 T6 Aluminium, 135mm Travel
Rear Shock: Rockshox Deluxe Trunnion 185×55mm
Rear Axle: UDH M12 x 1mm
Seatpost Diameter:
 30.9mm
Seat Clamp:
 DEED 34.9mm
Bottom Bracket: 73mm Threaded
Headset Spec: IS41/IS42
Fork Travel: 140mm / 150mm
Recommended Axle to Crown: 531mm
Hanger: UDH
Wheel Size: 29″
Max Tire Width: 2.35″
Intended Use: Trail

The TIG is our 135mm, super versatile lightweight frameset, designed for all-day technical Down Country and trail riding. Handcrafted right here in South Africa, from 6066 T6 heat-treated aluminium alloy as used on all our frame models. This alloy has superior properties to 6061 and even higher Tensile strength than 7020 with more elasticity and fatigue resistance.

With its 65.5 deg. head angle and slightly steeper seat angle than the Carbon MoBu, the Tig is a lively little ripper. Its kinematics with a leverage curve at 20% increase gives it exceptional support, anti-rise is between 62% and 74% making for an “active under braking” ride. Anti-squat levels are up at around 140% mid-cassette with a 34t front ring providing energy-efficient pedalling.

Frame prices from CHF 1499.- / € 1599.-

All prices include VAT and Import Duties
See more about pricing below

UDH System

In addition to a 148mm boost rear end, featuring the UDH system, the TIG is ready for SRAM Hangerless Derailleurs.

Handcrafted in South Africa

Handcrafted right here in South Africa, from 6066 T6 heat-treated aluminium alloy as used on all our frame models.

ISCG 05 Chain Guide

There’s a two bolt ISCG 05 chain guide mount and all pivots use additionally sealed double-row full complement bearings.

How to Buy

Please fill out the from below and we will get back to you with a delivery time and quote. Lead times at the moment are 2 weeks.

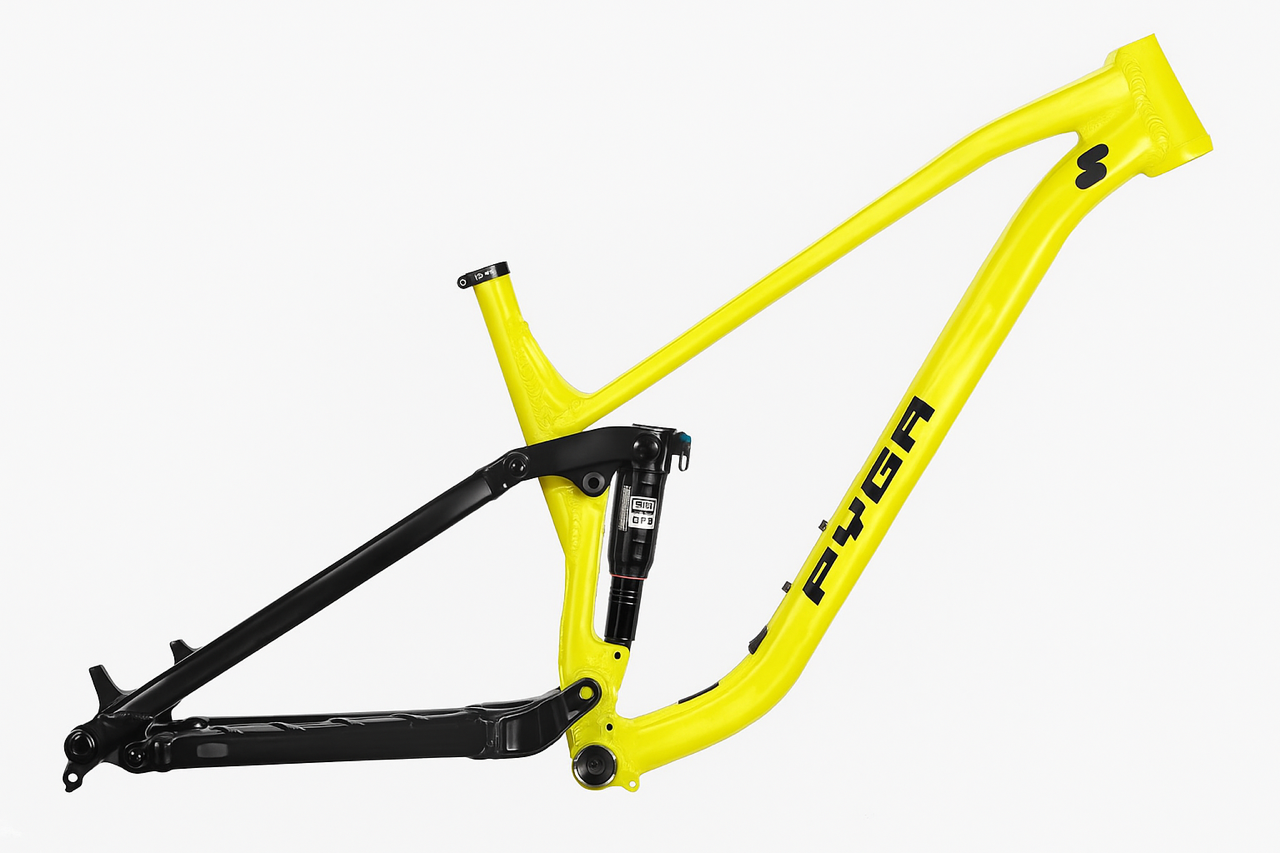

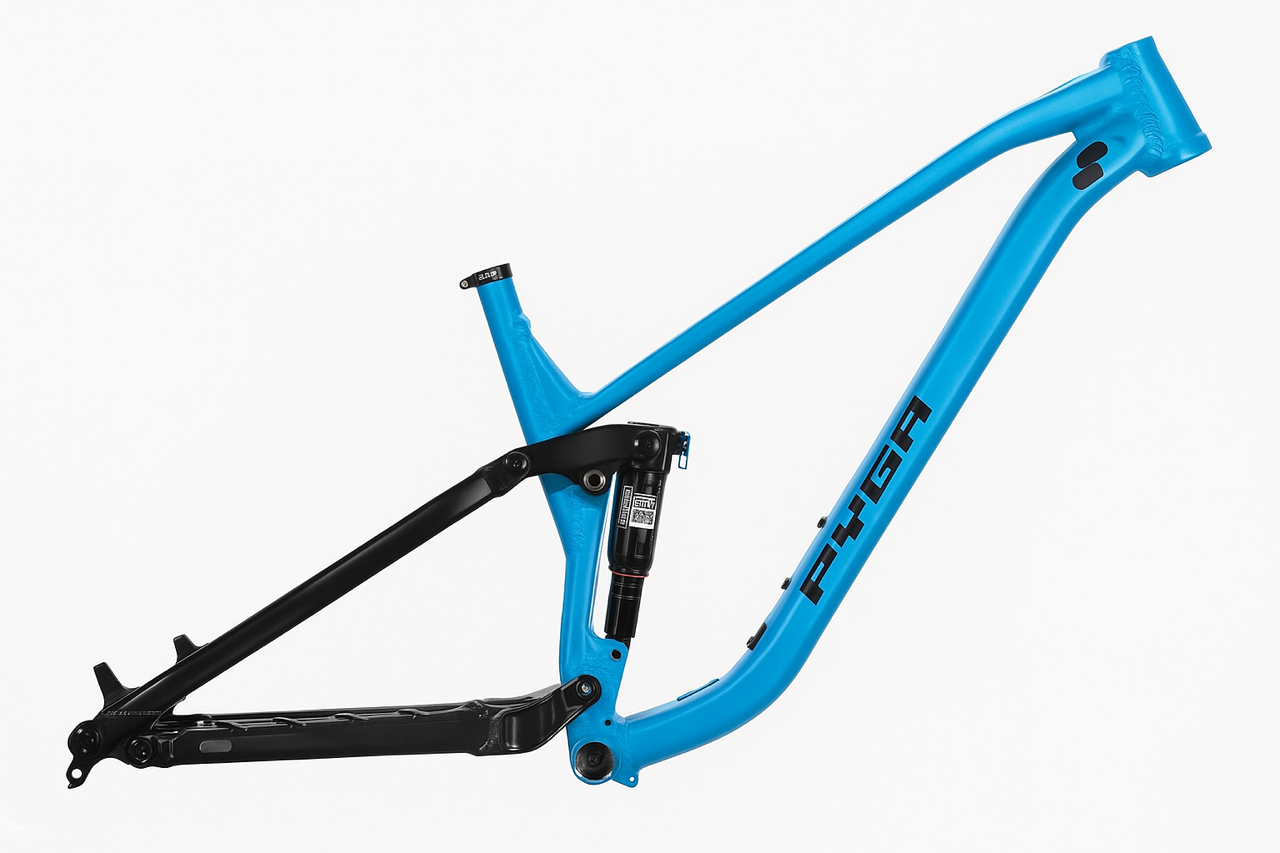

This frame can be supplied with or without shock and in 2 different colourways. Prices listed below:

Frame Only (No Shock)
CHF 1499.- / € 1599.-

Frame Kit (Incl. Rockshox Deluxe Trunnion 185×55mm)
CHF 1899.- / € 2099.-
